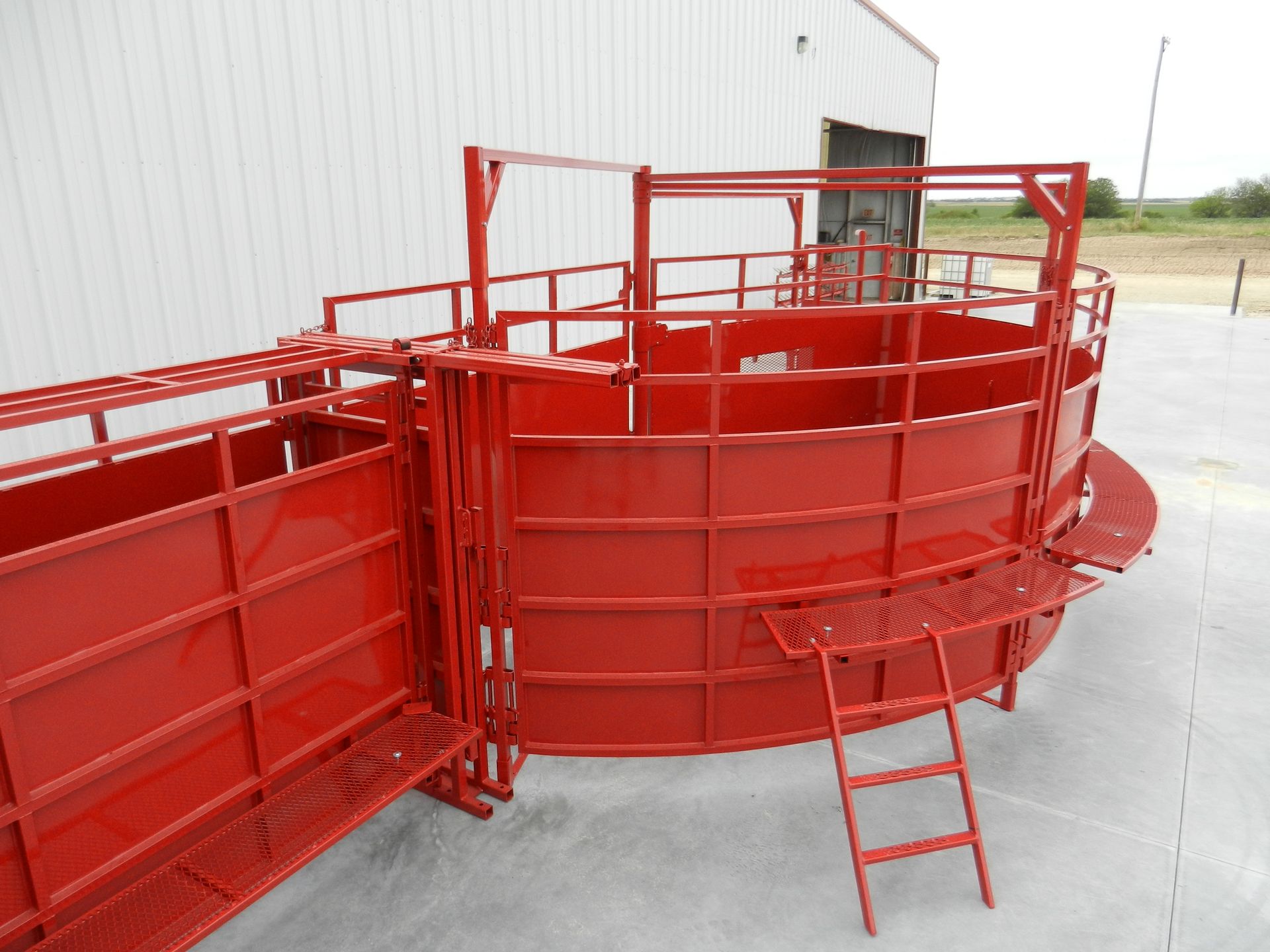

10' Radius Crowding tub (other sizes available upon request)
Crowding tub sides are 90" tall with the top of the sheet steel at 68"
Catwalks are available
Sturdy crowding tub latch for sure stopping of the gate and extra durability. Friction type latches covered with rough top belting which provides quiet operation and positive stopping power. Tub cleats provide added security
Heavy duty pivot post and gate hinge construction. Big crowding gates need big posts. TWI uses 4 1/2" O.D. heavy wall pipe to support our crowd gate. The hinges are large and fitted with grease zerks to keep things swinging smoothly
Crowding tub constructed of heavy gauge square tubing
Heavy duty steel construction for years of rugged use
Solid sheet metal sides prevent animals from becoming spooked and injuring themselves as well as protecting operators. Alleyway height is 78" tall with the top of the sheet steel at 68"

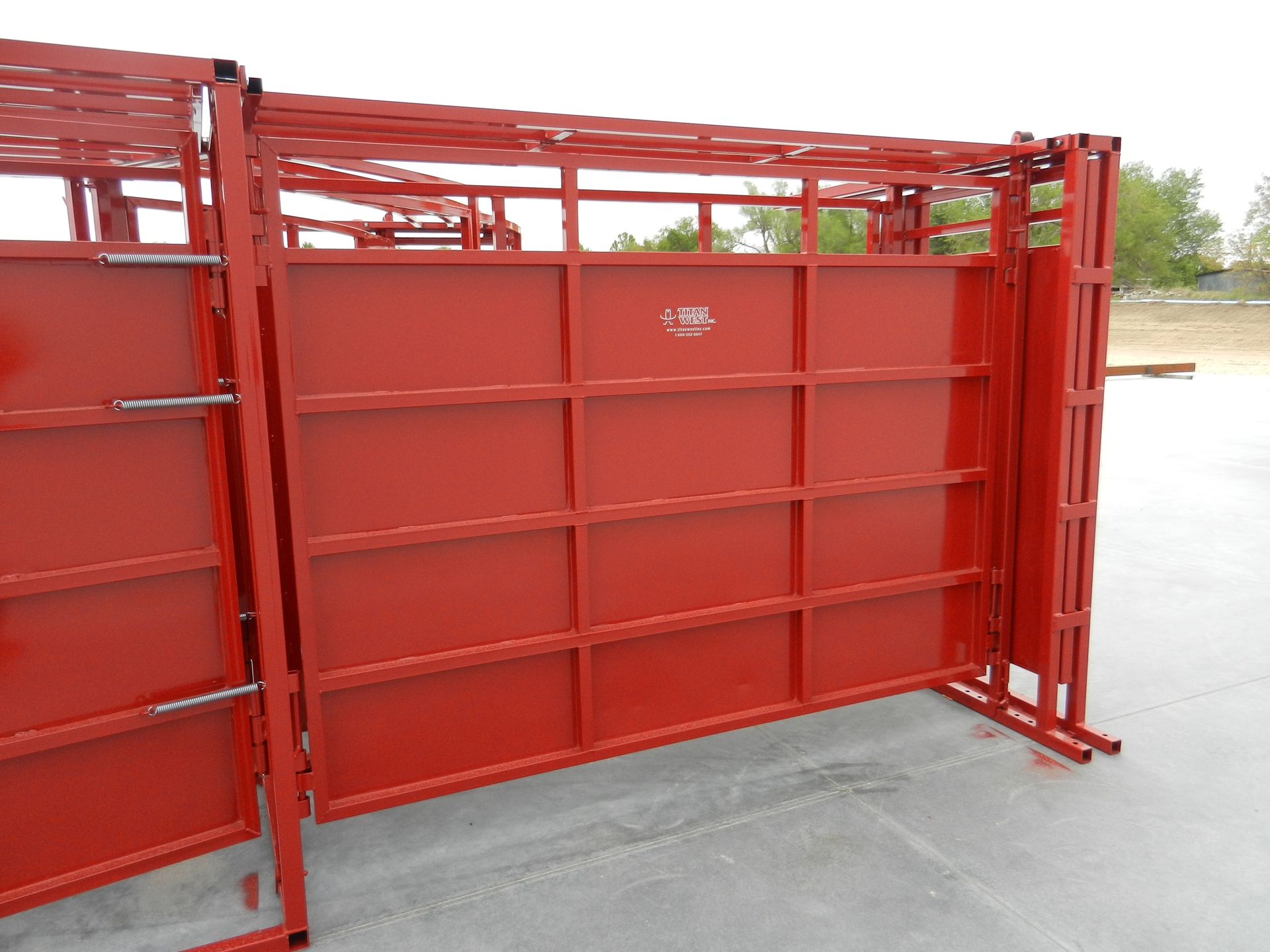

Horizontal slide gates are covered with sheet steel
Adjustable alleyways range from 18" to 30" in width. Alleyways are available in straight or curved sections
Extra wide catwalk sections available. Catwalk sections are covered with sturdy, slip resistant expanded metal
Overhead restraint rails standard for both straight and curved alleyways. These rails add strength and prevent spooked animals from attempting to jump out of the alleyway
Alleyway release doors are available for alleyway sections. These doors can be added at any location to fit your specific working needs
Alleyway is available with 2 or 3-way alley dividers. This allows the operator the flexibility to use the crowding area for more than one purpose. The alley dividers can be placed at any point within the facility
TWI colors are red or white. Other colors available at additional cost
We build the best and set the standard for the rest
